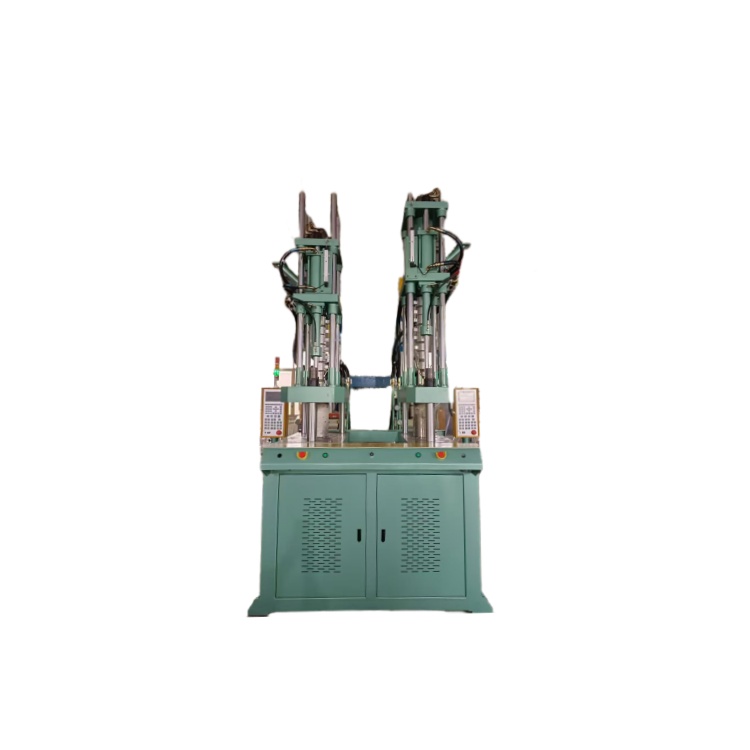

立式傘骨注塑機

立式傘骨注塑機是一種專門用于雨傘骨架注塑成型的設備，它具有以下特點：

1. 注射裝置與合模裝置在同一垂直中心線上，沿之上之下方向開合模具，占地面積小，約為臥式機的一半，但生產性能是換算成占地面積的兩倍左右。

2. 易于實現嵌入成型，因?yàn)槟＞弑砻娉希都湃攵ㄎ蝗菀?，適合復雜、精巧產品的自動成型。

3. 模具的重量由水平模板支撐，作直上直下啟閉動作，不會因模具自重造成前傾而使模板無法啟閉，有利于耐用性，保持機械和模具的精密度。

4. 每個塑件的型腔都可以通過簡單的機械手取出，有利于精密成型。

5. 一般鎖模裝置周圍開放，便于配置各種自動化裝置，適應于復雜、精致產品的自動成型。

6. 皮帶輸送裝置易于通過模具下方安裝，便于成型自動化生產。

7. 易于保證樹脂在模具中的流動性與模具溫度分布的一致性。

8. 配有旋轉工作臺、移動工作臺和傾斜工作臺等，很容易實現嵌件成型和模內組合成型。

9. 小批量生產時，模具結構簡單，成本低，拆裝方便。

10. 經受了多次地震的考驗，立式注塑機由于重心低，比臥式注塑機具有更好的抗震性能。

此外，立式傘骨注塑機還具有以下優勢：

1. 采用微電腦控制，動力系統利用油壓傳動，塑膠在料管內經過電熱圈加熱及料管螺桿旋轉產生剪切進行預塑熔融注射入型腔，經冷卻，開模，頂出動作即得出產品，可進行手動，半自動及全自動生產。

2. 油電復合DV—E系列立式注塑機具有小批量試生產時模具構造簡單成本低，且便于卸裝；容易實現嵌件成型；模具的重量由水平模板支承作上下開閉動作，不會發生類似臥式機的由于模具重力引起的前倒，使得模板無法開閉的現象。有利于持久性保持機械和模具的精度等特點。

3. 科錦機械分享了幾點立式注塑機特點，包括立式無柱鎖模，臥式注塑，三面開模，操作更加方便、安全；注射壓力大，扭矩液壓馬達控制，螺旋扭力大，預塑性高，系統壓力由比例閥控制；多段壓力輸出，壓力反應靈敏，精確度高；可裝單、雙滑板、轉盤系統，提高生產效率；適合大射膠量生產。

綜上所述，立式傘骨注塑機以其獨特的設計和功能，成為雨傘骨架注塑成型的理想選擇。

Vertical umbrella bone injection molding machine is a special equipment for umbrella bone injection molding, it has the following characteristics:

1. the injection device and the closing device are on the same vertical centerline, opening and closing the molds along the above and below direction, covering a small area, about half of the horizontal machine, but the production performance is about twice of the converted area.

2. It is easy to realize insert molding because the surface of the mold is facing upward and it is easy to place and position the inserts, which is suitable for automatic molding of complex and delicate products.

3. The weight of the mold is supported by the horizontal mold plate, and the mold can be opened and closed straight up and down, so the mold will not be tilted forward due to the weight of the mold and the mold plate can not be opened and closed, which is conducive to the durability and maintains the precision of the machine and the mold.

4. Each cavity of the molded part can be taken out by simple manipulator, which is conducive to precision molding.

5. The general mold clamping device is open around the mold, which is easy to configure various automation devices, adapting to the automatic molding of complex and delicate products.

6. Belt conveyor is easy to be installed through the bottom of the mold, which is convenient for automatic production of molding.

7. It is easy to ensure the fluidity of resin in the mold and the consistency of temperature distribution in the mold.

8. Equipped with rotary table, moving table and tilting table, etc., it is easy to realize insert molding and in-mold combination molding.

9. Simple mold structure, low cost and easy disassembly and assembly for small batch production.

10. Having stood the test of many earthquakes, the vertical injection molding machine has better anti-seismic performance than the horizontal injection molding machine due to its low center of gravity.

In addition, vertical umbrella bone injection molding machine has the following advantages:

1. Adopting microcomputer control, the power system uses hydraulic transmission, the plastic is heated in the material pipe by electric heating ring and the material pipe screw rotates to produce shear for pre-molding and melting to be injected into the cavity, and then cooled, molded, and ejected to produce the product, which can be produced manually, semi-automatically, and fully automatic production.

2. The oil-electric composite DV-E series vertical injection molding machine has the advantages of simple and low-cost mold construction for small-lot trial production and easy unloading; it is easy to realize insert molding; the weight of the mold is supported by the horizontal template for the up-and-down opening and closing action, and it will not occur similar to the phenomenon of the horizontal machine, which is not able to open and close the template due to the forward fall of the mold caused by the gravity of the mold. It is beneficial to maintain the accuracy of the machine and mold in a durable manner.

3. Kejin Machinery shared a few vertical injection molding machine features, including vertical column-free clamping, horizontal injection, three-sided mold opening, more convenient and safer operation; injection pressure, torque hydraulic motor control, screw torque, high pre-molding, the system pressure controlled by a proportional valve; multi-stage pressure output, sensitive pressure response, high accuracy; can be fitted with a single, double-sliding plate, carousel system, to improve production efficiency; suitable for large volume of injected glue Production.

In summary, vertical umbrella bone injection molding machine with its unique design and function, become the ideal choice for umbrella bone injection molding.
